Wheels for Purpose
We designed the Scribe Duty to be a super strong, super robust wheel set with Aerodynamic ability. By using 30mm+ depth rims, combined with Pillar Wing 20 spokes, these wheels are Aero, and fast! You'll notice increased speeds as the wheels cut through the air everywhere you go. As the build features hardened alloy rims, combined with brass Pillar lock nipples, the Duty-D are strong, durable and are designed to stand the test of time.
The Wide 19mm internal profile gives you the option to fit wide tyres for increased stability when cornering, and increased speed due to improved rolling resistance - especially when ran as tubeless. With a centrelock disc as standard, you can ride with confidence knowing the stopping power is there when it's needed.
Tech Spec (summary)
|Type||Clincher - Tubeless Ready|
|Rim Width (external)||24mm|
|Rim Width (internal)||19mm|
|Spoke Pattern/Hole Count||Front (2x) 28H, Rear (3x) 32H|
|Weight Limit||Total combined weight limit is 130kg|
- Hardened, heat treated rim design - light in weight but super tough
- Asymmetric design for more even spoke tensions
- 28 hole Front | 32 hole Rear
- Tubeless ready design gives you the option to have increased puncture resistance, faster-rolling wheels and improved weight (works with standard tube also)
- 4-D precision drilled spoke holes - directs spokes exactly to hub anchor point
- Ramped rim bed for easy tyre fitment
- Bead lock design for secure tyre binding, even at lower pressures
- Patented Ratchet Drive hub system Exclusive to Scribe
- Single Ratchet disc, and leaf spring offers incredible durability as there's only one moving part
- Heat treated stainless steel drive ring

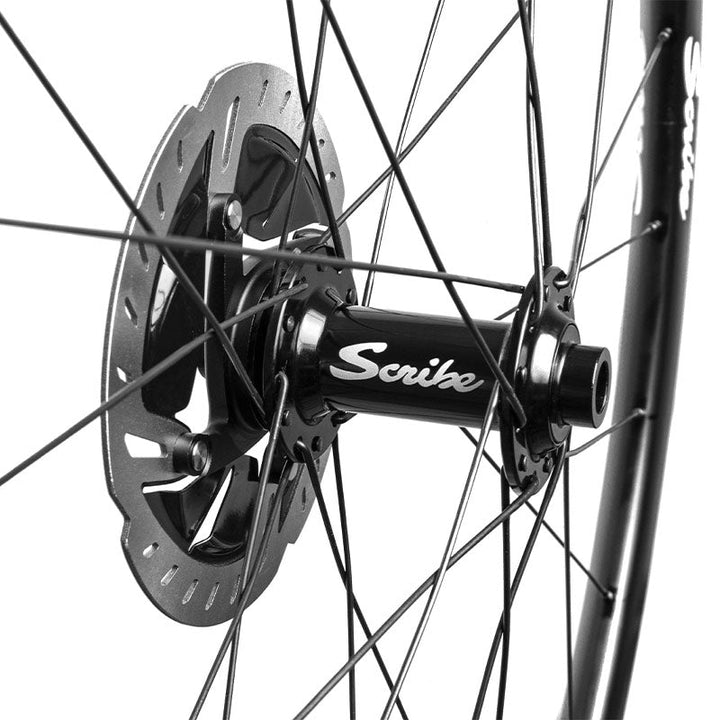

- Centrelock disc standard (6-bolt adapter available)
- Fully CNC'd rounded design with 4-D precision drilled spoke holes
- Shimano (HG & HG+) /SRAM (PG) 8/9/10/11/12 speed compatible Anti-bite freehub body fitted - Campagnolo and XDR also available
- Available in all major standards - Front: QR, Bolt thru (12mm and 15mm); Rear: QR, Bolt thru (142x12)
Bearings are an essential component of wheels and it's important your bearings perform as you want them to. This wheelset comes with sealed, low friction Endurance bearings that are designed to stand the test of time. Ride as much as you want, with confidence your bearings will keep spinning smoothly.
- High quality Taiwanese TPI stainless steel bearings (doesn't rust or corrode)
- Sealed cartridge units with 1x contact seal (outer facing seal interfaces with ball bearings to resist water penetration), and 1x non-contact seal (no interface between ball bearings increases rolling speed)
- Precision engineered to produce incredibly high roundness, with low friction surface
Spokes and Nipples
- The Scribe Duty-D wheels have been upgraded to the Pillar Wing 20 spoke. Following aerodynamic and laboratory testing, the Wing 20 offers increased aero benefits over all bladed spokes on the market with increased stiffness. At 4.3g each, and almost as light as Titanium, we can build you a super-lightweight wheelset that allows you to get up to speed fast with increased aero gains when at speed.
- High strength, Swedish Stainless Steel T302+ aero spoke (2.0mm – 1.2mm)
- Pillar Patented head technology offers increased strength at anchor point and reduces fatigue so your wheels stand the test of time.
- J-bend for easy replacement
- 28 hole front / 32 hole rear
- For nipples, we use Brass Pillar Lock nipples. As the Dutys are designed to be exceptionally tough, brass nipples have significantly improved fatigue resistance when compared with alloy, and they don't corrode, so you can ride them in wet, salty conditions without having to worry about them failing.
Additional items in the box
- Tubeless tape: pre-installed
- Tubeless valves
- Spare spokes
- Spare nipples
- 6-bolt adapter (converts centrelock to 6-bolt)
- Lockring for 15mm axles
- Slim-fit lockring for tight clearing forks
- 10-speed spacer
